Hands-on Exercise 7

Getting started

1. Using p_load() of pacman package to load the required libraries

pacman::p_load(scales, viridis, lubridate, ggthemes, gridExtra, readxl, knitr,
               data.table, CGPfunctions, ggHoriPlot, tidyverse)

2. Importing Data

attacks <- read_csv("data/eventlog.csv")

3. Data Preparation

Step 1: Deriving weekday and hour of day fields

make_hr_wkday <- function(ts, sc, tz) {
  real_times <- ymd_hms(ts,
                        tz = tz[1],
                        quiet = TRUE)
  dt <- data.table(source_country = sc,
                   wkday = weekdays(real_times),
                   hour = hour(real_times))
  return(dt)
  }

Step 2: Deriving the attacks tibble data frame

wkday_levels <- c('Saturday', 'Friday',
                  'Thursday', 'Wednesday',
                  'Tuesday', 'Monday',
                  'Sunday')

attacks <- attacks %>%
  group_by(tz) %>%
  do(make_hr_wkday(.$timestamp,
                   .$source_country,
                   .$tz)) %>%
  ungroup() %>%
  mutate(wkday = factor(
    wkday, levels = wkday_levels),
    hour  = factor(
      hour, levels = 0:23))

kable(head(attacks))

tz	source_country	wkday	hour
Africa/Cairo	BG	Saturday	20
Africa/Cairo	TW	Sunday	6
Africa/Cairo	TW	Sunday	8
Africa/Cairo	CN	Sunday	11
Africa/Cairo	US	Sunday	15
Africa/Cairo	CA	Monday	11

1. Plotting Calender Heatmap

grouped <- attacks %>%
  count(wkday, hour) %>%
  ungroup() %>%
  na.omit()

ggplot(grouped,
       aes(hour,
           wkday,
           fill = n)) +
geom_tile(color = "white",
          size = 0.1) +
theme_tufte(base_family = "Helvetica") +
coord_equal() +
scale_fill_gradient(name = "# of attacks",
                    low = "sky blue",
                    high = "dark blue") +
labs(x = NULL,
     y = NULL,

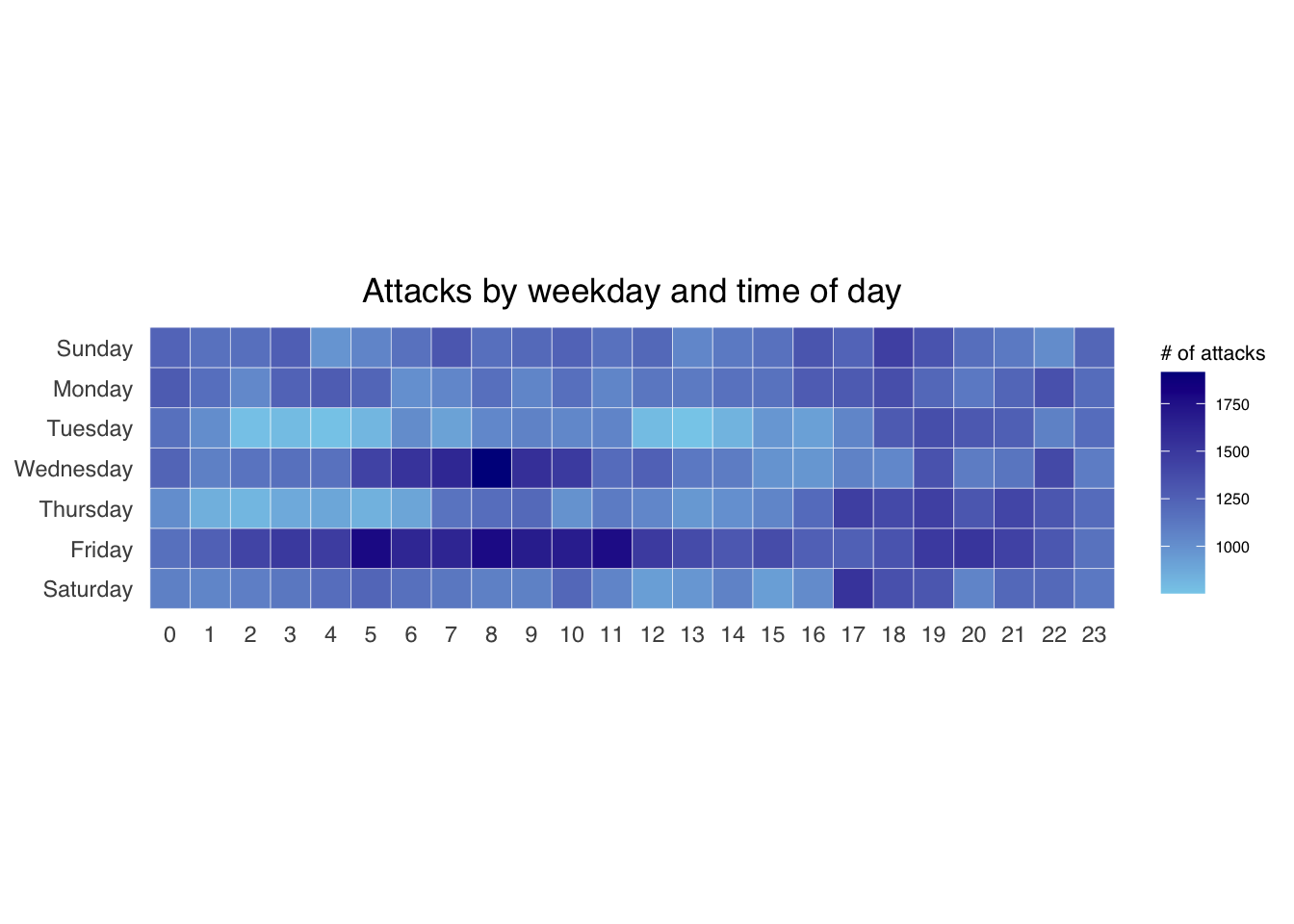

     title = "Attacks by weekday and time of day") +
theme(axis.ticks = element_blank(),
      plot.title = element_text(hjust = 0.5),
      legend.title = element_text(size = 8),
      legend.text = element_text(size = 6) )

1.1 Plotting Multiple Calender Heatmap

Step 1: Deriving attack by country object

In order to identify the top 4 countries with the highest number of attacks, you are required to do the followings:

• count the number of attacks by country,

• calculate the percent of attackes by country, and

• save the results in a tibble data frame.

attacks_by_country <- count(
  attacks, source_country) %>%
  mutate(percent = percent(n/sum(n))) %>%
  arrange(desc(n))

Step 2: Preparing the tidy data frame

Extract the attack records of the top 4 countries from attacks data frame and save the data in a new tibble data frame (i.e. top4_attacks).

top4 <- attacks_by_country$source_country[1:4]
top4_attacks <- attacks %>%
  filter(source_country %in% top4) %>%
  count(source_country, wkday, hour) %>%
  ungroup() %>%
  mutate(source_country = factor(
    source_country, levels = top4)) %>%
  na.omit()

Step 3: Plotting the heatmaps

ggplot(top4_attacks,
       aes(hour,
           wkday,
           fill = n)) +
  geom_tile(color = "white",
          size = 0.1) +
  theme_tufte(base_family = "Helvetica") +
  coord_equal() +
  scale_fill_gradient(name = "# of attacks",
                    low = "sky blue",
                    high = "dark blue") +
  facet_wrap(~source_country, ncol = 2) +
  labs(x = NULL, y = NULL,
     title = "Attacks on top 4 countries by weekday and time of day") +
  theme(axis.ticks = element_blank(),
        axis.text.x = element_text(size = 7),
        plot.title = element_text(hjust = 0.5),
        legend.title = element_text(size = 8),
        legend.text = element_text(size = 6) )

2. Plotting Cycle Plot

2.1 Importing Data

arrivals_by_air.xlsx will be used for this exercise.

air <- read_excel("data/arrivals_by_air.xlsx")

2.2 Data Wrangling

Step 1: Derive month and year field

air$month <- factor(month(air$`Month-Year`),
                    levels=1:12,
                    labels=month.abb,
                    ordered=TRUE)
air$year <- year(ymd(air$`Month-Year`))

Step 2: Select the target country

Vietnam <- air |>
  select(Vietnam,
         month,
         year) |>
  filter(year >= 2010)

Step 3: Compute year average by months

hline.data <- Vietnam |>
  group_by(month) |>
  summarise(avgvalue = mean(Vietnam))

2.3 Plotting Cycle Plot

ggplot() +
  geom_line(data=Vietnam,
            aes(x=year,
                y=`Vietnam`,
                group=month),
            colour="black") +
  geom_hline(aes(yintercept=avgvalue),
             data=hline.data,
             linetype=6,
             colour="red",
             size=0.5) +
  facet_grid(~month) +
  labs(axis.text.x = element_blank(),

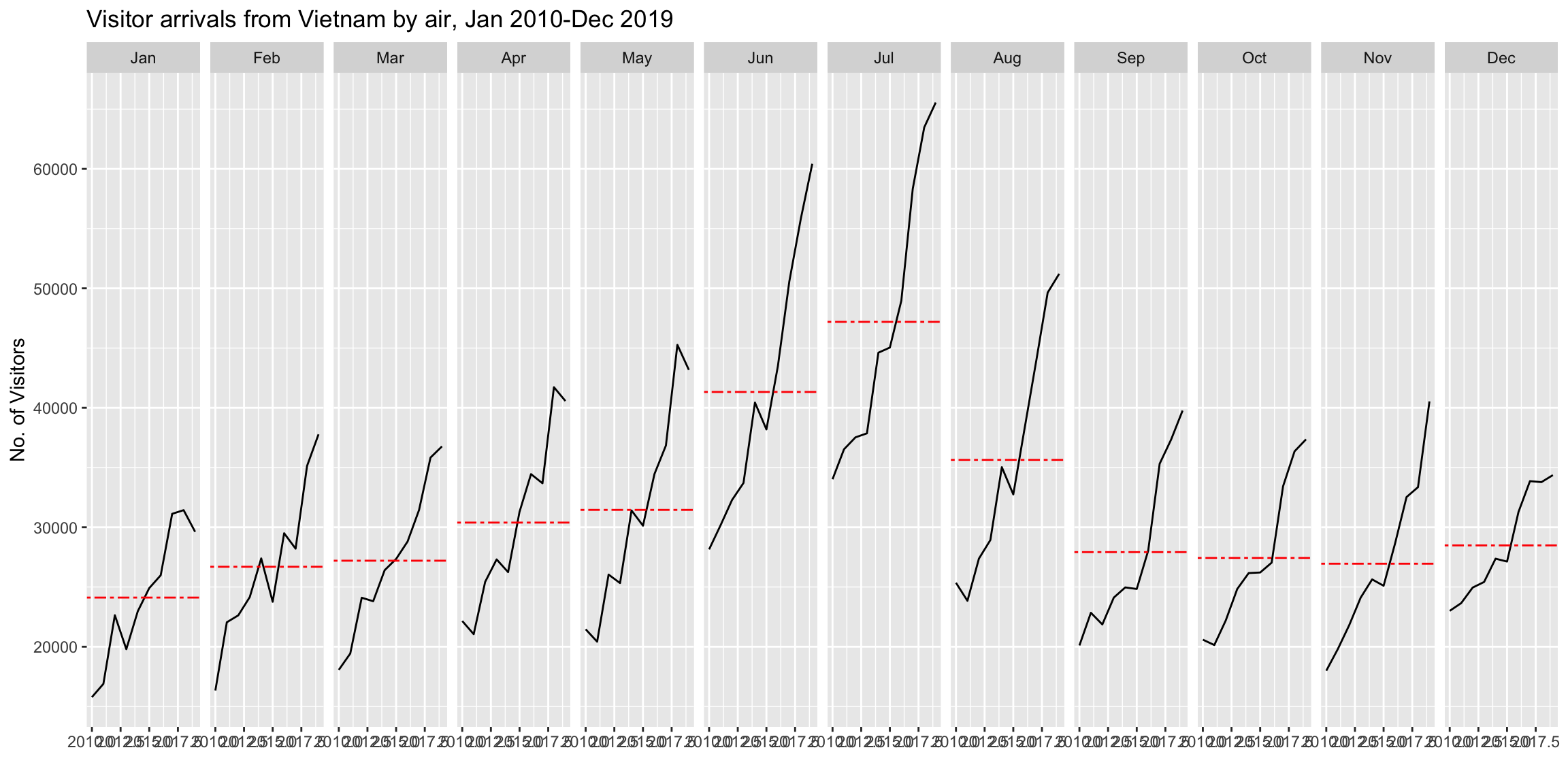

       title = "Visitor arrivals from Vietnam by air, Jan 2010-Dec 2019") +
  xlab("") +
  ylab("No. of Visitors")

3. Plotting slopegraph

3.1 Importing Data

rice.csv will be used for this exercise.

rice <- read_csv("data/rice.csv")

3.2 Plotting slopegraph

rice %>%
  mutate(Year = factor(Year)) %>%
  filter(Year %in% c(1961, 1980)) %>%
  newggslopegraph(Year, Yield, Country,

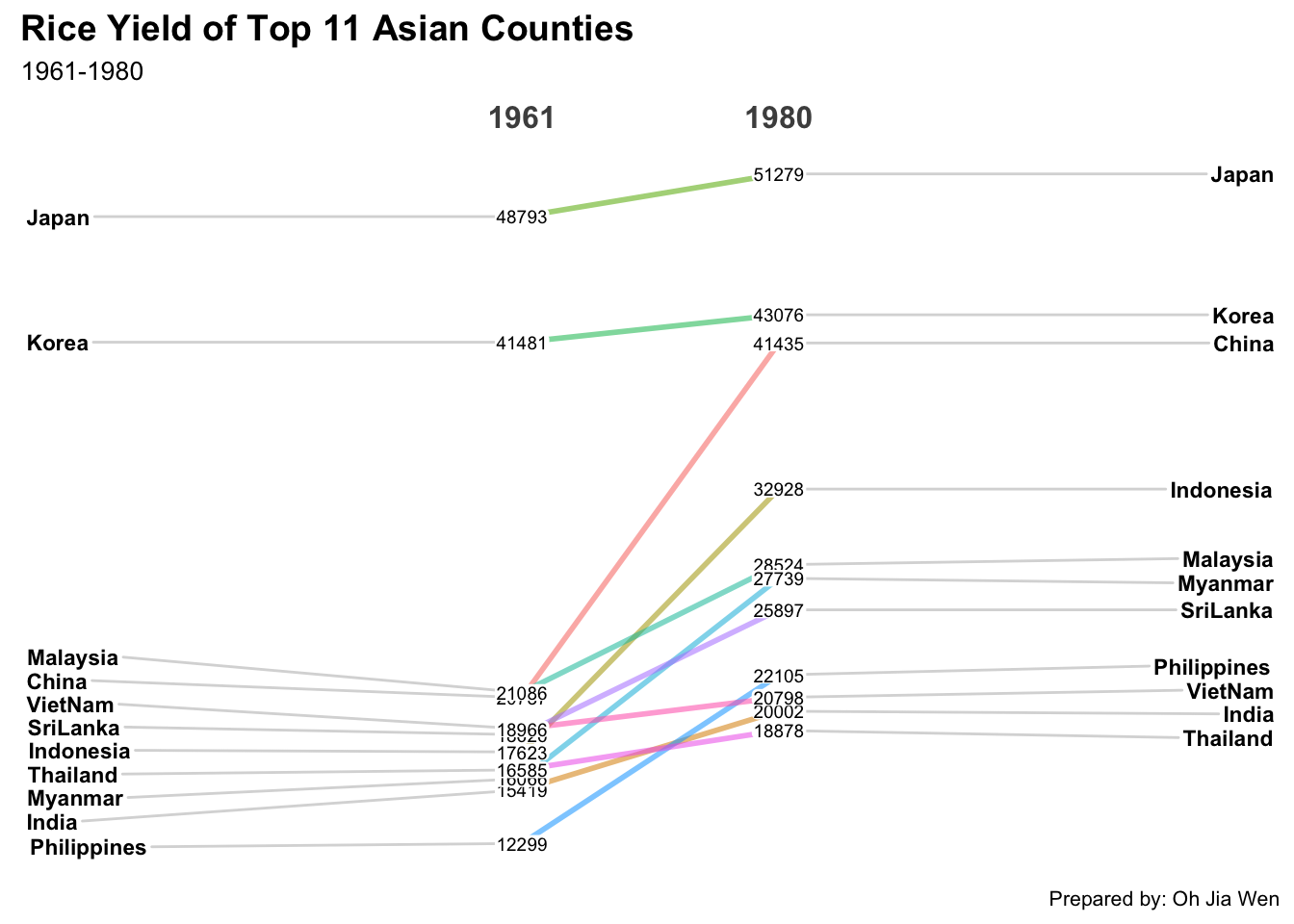

                Title = "Rice Yield of Top 11 Asian Counties",
                SubTitle = "1961-1980",
                Caption = "Prepared by: Oh Jia Wen")

4. Horizon Graph

Do refer to In-class Exercise 07
